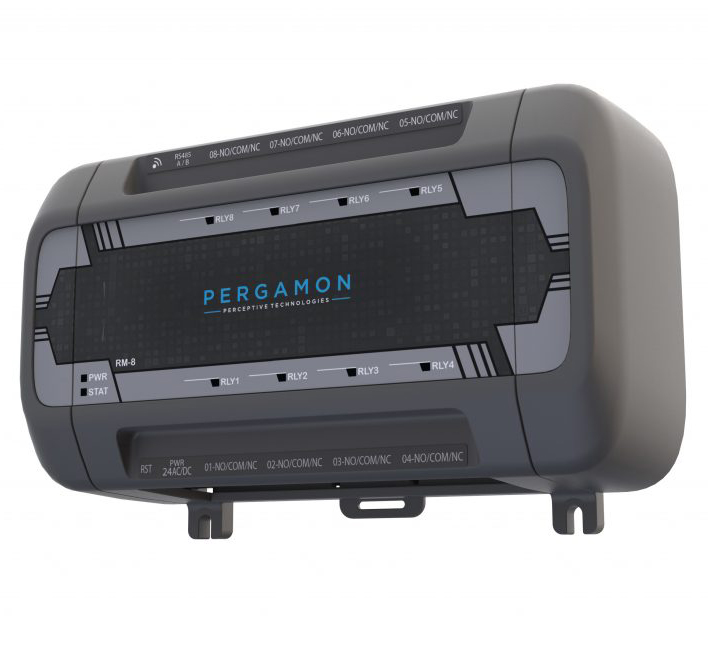

Relay Module
Relay Module
Key Features
- 8 dry contact relays, 8 A @ 240 V each
- Shielded RS485 or LoRa wireless
- Energy efficient
- And more … see specifications
Specification
| Dimensions | 8.5 in. x 5.5 in. x 3 in. (216 mm x 140 mm x 76 mm) |
| Weight | 0.44lb (200g) |
| Power Supply | +24 V DC/AC |
| Power Consumption | 190 mA max. |
| Outputs | 8 dry contact relays, 8 A @ 240 V each |
| Communication | Shielded RS485 or LoRa wireless |
| Indication | 2 power and status LEDs |
Operating Conditions
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Operating Humidity | 0 to 90% RH non-condensing |
| Total Current Consumption | 190 mA max |
